Spannsystem für taktiles Messen - dk FIXIERSYSTEME

QUADERFIX

Clamping system for tactile measuring – Cuboid elements

  • Modular fixture system constructed from standard cuboid elements
  • Drilled through holes on a 25 mm grid
  • Compatible with the SPANNFIX product range

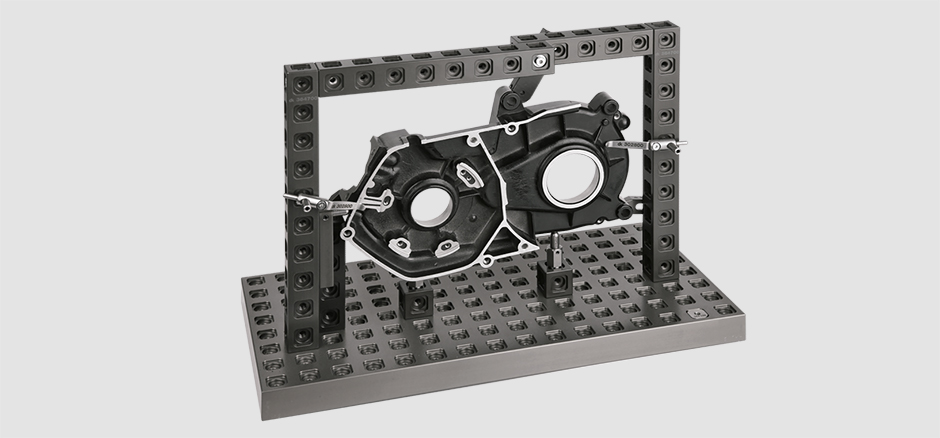

Reproducible, anti-twist 3D fixtures through profile grid pattern



QUADERFIX elements are as easy to understand as building blocks, free spatial positioning and as rigid as if milled from a solid block. The program is so variable and simultaneously, equipped with so many accessories and high compatibility to the other dk fixating systems that highest versatility is the result. Even though QUADERFIX is basically designed to support dk’s market leadership in the field of test piece sizes up to 1,000 mm, there is no weight and size limit for the workpieces to be mounted in this fixation program. It is therefore ideal for providing users optimum support where part sizes are mainly, but not only in the medium size range. The system integrity over basic, construction, positioning and clamping elements applies within QUADERFIX and at the same time extends over the majority of the other dk fixation systems. This makes this program incredibly high-performance. QUADERFIX is therefore integral to dk’s unique market position as developer, manufacturer and retailer of user-oriented, efficient and sustainable fixturing systems.



 QUADERFIX – basic elements

CAD Daten abrufen



Base plates

An interface between the machine table and the fixturing system. For rotation lock placement of structural elements in square locating sockets and M6 threads. Rectangular and customer-specific designs.

Download further information



If you have any questions about our products, we look forward to hearing from you and personally advising you. Call us on +49 (0) 7121 90 97 10 – our lines are open Monday to Thursday from 08.00 to 16.00 or Friday from 08.00 to 13.00.

Contact us



 QUADERFIX – structural elements

CAD Daten abrufen



Columns and V-blocks

Structural elements for rotation lock placement with all side 25 mm grid for three-dimensional constructions, for variable positioning of stops, supporting elements and clamping elements. Adjustable rails, supports and bushes. Extension pieces for use with adapters.

Download further information

Adapters and connectors

Angle block for reinforcement or to ease assembly. Struts for increasing rigidity and strengthening larger
constructions or by very heavy workpieces. And other structural elements to connect columns.

Download further information

Supports and stop

Centring bush and plate for locating cuboid elements that are to be screwed together. Centring plate secured against rotation.

Download further information

Arms and jack screws

The basics are columns with external threads for direct fastening onto QUADERFIX plates and QUADERFIX columns. Also, a complete system of of arms, cross connectors and supports for infinitely variable spatial positioning.

Download further information

Screw jack sets

Adjustable base rail with support and spring finger. The support height is adjustable.

Download further information



If you have any questions about our products, we look forward to hearing from you and personally advising you. Call us on +49 (0) 7121 90 97 10 – our lines are open Monday to Thursday from 08.00 to 16.00 or Friday from 08.00 to 13.00.

Contact us



 QUADERFIX – clamping elements

CAD Daten abrufen



Spring fingers

Clamping elements for quickly and easily holding test parts. Diverse versions available, flat, rounded or forked and adjustable versions. Also available, columns with thread and retaining plates for the columns.

Download further information

Columns with screw

Columns with screws for mounting spring fingers or for use as a stop element.

Download further information

Toggle clamps

Clamping elements in a variety of designs such as toggle clamps with support.

Download further information

T-slot / Cuboid adapter

Adapter for mounting cuboid modules on SPANNFIX T-slot plates.

Download further information

SWA 39 quick-action clamp for QUADERFIX

SWA 39 quick-action clamp for direct fastening on cuboid plates.

Download further information



If you have any questions about our products, we look forward to hearing from you and personally advising you. Call us on +49 (0) 7121 90 97 10 – our lines are open Monday to Thursday from 08.00 to 16.00 or Friday from 08.00 to 13.00.

Contact us



 QUADERFIX – sets

CAD Daten abrufen



Sets

Set combinations for different applications available in a variety of designs as a basic set and expansion set. Sets with useful pre-configurations for an easier and cost-effective introduction to the world of professional measuring and fixturing technology with rotation locking of the main elements.

Download further information

Expansion set

Fasteners for Quaderfix in a practical assortment box. Consisting of i.e. bushes, adapters and clamping screws in various lengths, for mounting individual cuboid elements. Two set versions available.

Weitere Informationen herunterladen



If you have any questions about our products, we look forward to hearing from you and personally advising you. Call us on +49 (0) 7121 90 97 10 – our lines are open Monday to Thursday from 08.00 to 16.00 or Friday from 08.00 to 13.00.

Contact us

Do you require further information on QUADERFIX?
